Lehner Liftboy 5
Liftboy 5
A compact vertical platform lift with a 1300 mm travel height, 315 kg capacity and two platform-width options for wheelchair access.
At a glance
- Lift height
- 1300 mm
- Load capacity
- 315 kg
- Platform width
- 900 or 1100 mm
- Platform length
- 1400 mm
Product information
Overview

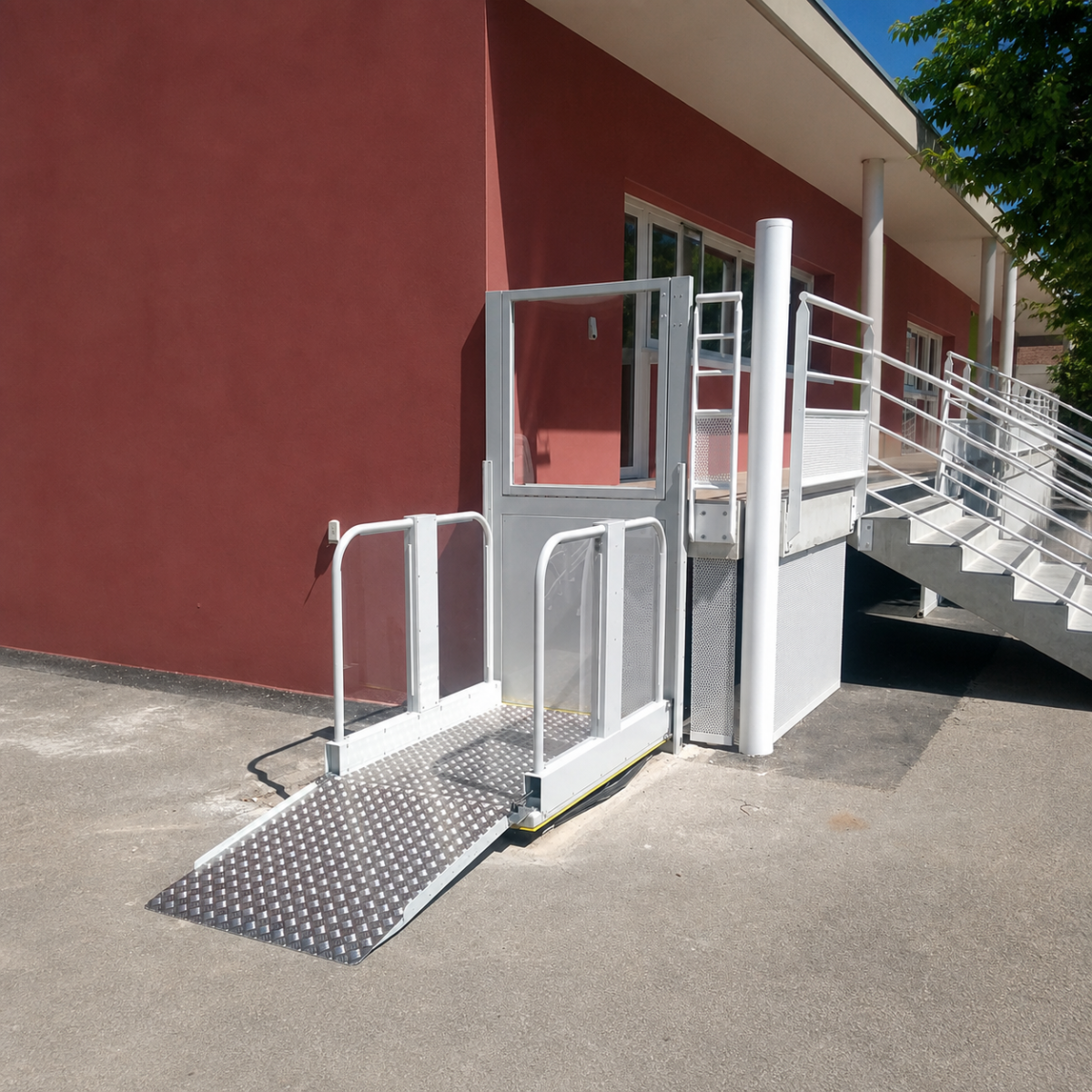

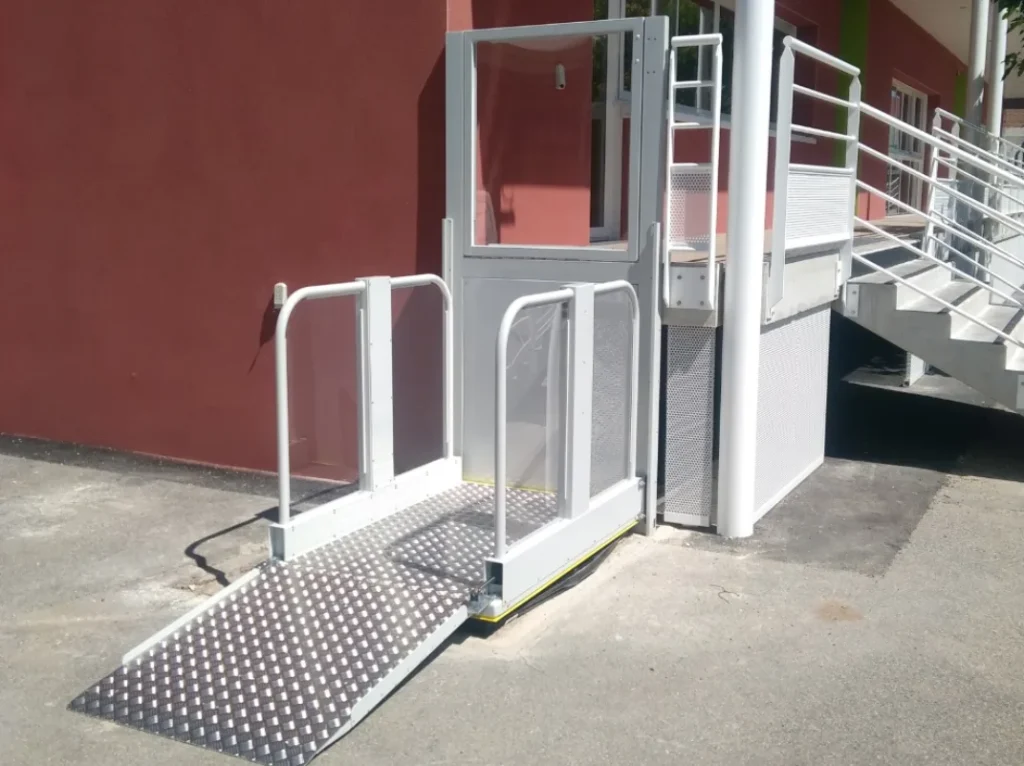

Liftboy 5 is a compact vertical wheelchair platform lift for changes in level up to 1300 mm. Its platform is raised by a 24 V actuator and double-scissor mechanism, with a rated load capacity of 315 kg.
Two platform widths are listed: 900 mm and 1100 mm, both with a 1400 mm platform length. The 125 mm minimum closed height and automatic access ramp help keep the lower landing arrangement compact.
An upper platform door, automatic door opener, glass shaft and app control are among the available options. Platform size, access, guarding, finish and installation requirements must be confirmed for the assessed site.
Designed around everyday use
Key features
-
1300 mm lifting height
Designed for low-rise vertical travel up to 1300 mm.
-
315 kg load capacity
The platform is rated by the manufacturer for a 315 kg load.
-
Two platform widths
Choose a 900 mm or 1100 mm platform width, each with a 1400 mm length.
-
Double-scissor drive
Two 24 V actuators power the compact double-scissor lifting mechanism.
-
Access and enclosure options
An automatic ramp, upper platform door, automatic opener and glass shaft can be specified.
Technical details
Specifications
- Lift height
- 1300 mm
- Load capacity
- 315 kg
- Platform width
- 900 or 1100 mm
- Platform length
- 1400 mm
- Minimum closed height
- 125 mm
- Speed
- 25 mm/s
- Drive system
- 24 V actuators with double-scissor mechanism
- Power supply
- 1 × 230 V / 50–60 Hz
- Standard finish
- RAL 7035 or RAL 9007
- Optional finish
- Other RAL colours
- Lower access
- Automatic access ramp
- Platform size options
- 900 × 1400 or 1100 × 1400 mm
Product documents
Downloads
Product questions
Frequently asked questions
What is the maximum lifting height of Liftboy 5?
The listed lifting height is 1300 mm. The actual site arrangement and landing protection must be confirmed during assessment.
What platform sizes are available?
The manufacturer lists 900 × 1400 mm and 1100 × 1400 mm platforms.
What is the load capacity?
Liftboy 5 has a listed load capacity of 315 kg.
Can Liftboy 5 include a landing door?
Yes. An upper platform door and an automatic door opener are available as options, together with other enclosure and control choices.
