Stairlifts
Lehner Lifttechnik Alpha
Alpha

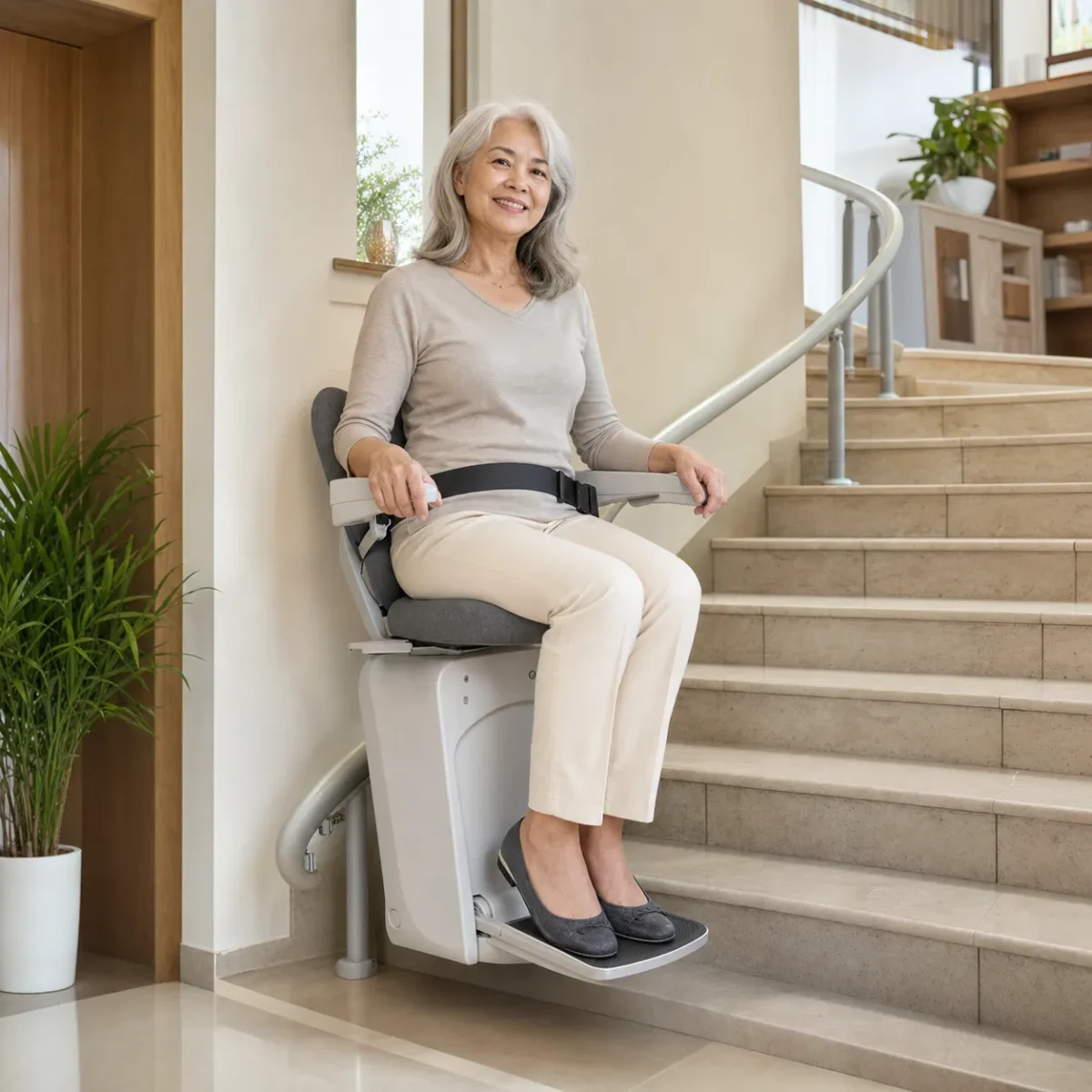

A curved-stairlift solution with a custom-bent double-rail system, designed for bends, intermediate landings and discreet parking positions.
At a glance
- Max. user weight
- 130 kg
- Angle of stairs
- 0° – 52°
- Power supply
- 1×110/220 V for charger
- Fold-out width
- 64,5 cm
Product information
Overview

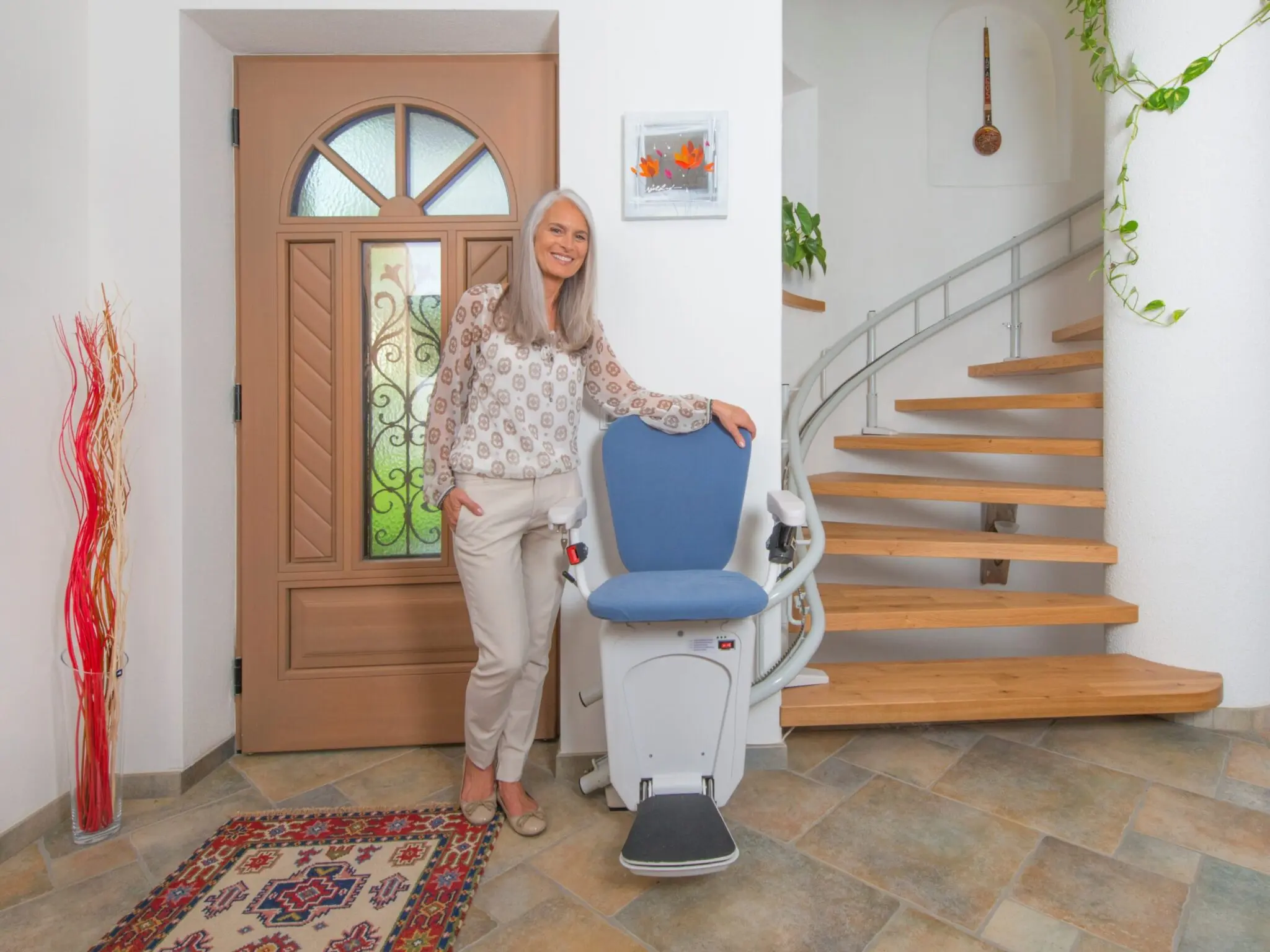

The Alpha stairlift eliminates the barrier of stairs by providing safe and easy access to other floors. Alpha has been designed for installation on stairs with a curve, an intermediate landing, or even when discreet out-of-the-way parking is required. Smooth riding, comfortable and reliable; the Alpha stairlift features a double rail system for both strength and durability.
Through accurate photo measuring and computer-aided design, all our rails are custom bent to the exact specification of your stairs.
Just choose the ideal seat and rail colours for Alpha to perfectly complement the interior design of your home and our installation will be delivered with industry-leading efficiency.
Technical details
Specifications
- Max. user weight
- 130 kg
- Angle of stairs
- 0° – 52°
- Power supply
- 1×110/220 V for charger
- Fold-out width
- 64,5 cm
- Rail system
- 44,5 mm powder coated steel tube profiles
- Optional
- All RAL colours
- Optional
- Motorized footrest folding
- Optional
- Motorized swivel seat
- Optional
- Increased loading capacity of 145 kg
- Optional
- Stand-up seating
- Optional
- Wider armrest distance
- Optional
- Joystick position left or right
Product documents
Downloads
Discuss the next step
Ask the team about Alpha.
Share the staircase or level change involved and who will use the solution.
